Using LayoutTensor

A LayoutTensor provides a view of multi-dimensional data stored in a linear array. LayoutTensor abstracts the logical organization of multi-dimensional data from its actual arrangement in memory. You can generate new tensor "views" of the same data without copying the underlying data. This facilitates essential patterns for writing performant computational algorithms, such as:

Extracting tiles (sub-tensors) from existing tensors. This is especially valuable on the GPU, allowing a thread block to load a tile into shared memory, for faster access and more efficient caching.

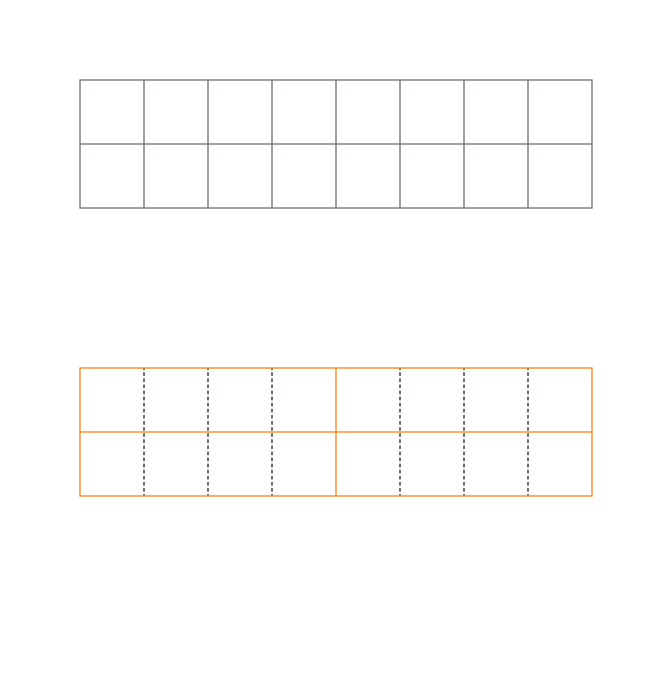

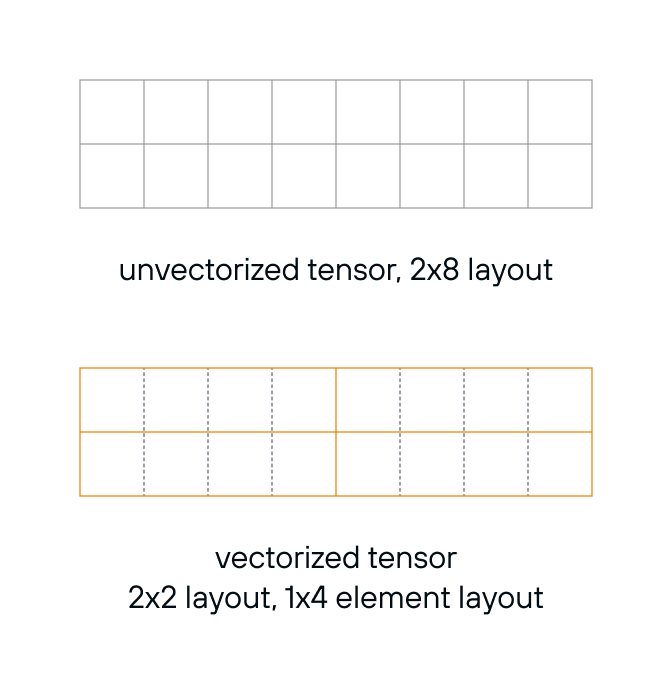

Vectorizing tensors—reorganizing them into multi-element vectors for more performant memory loads and stores.

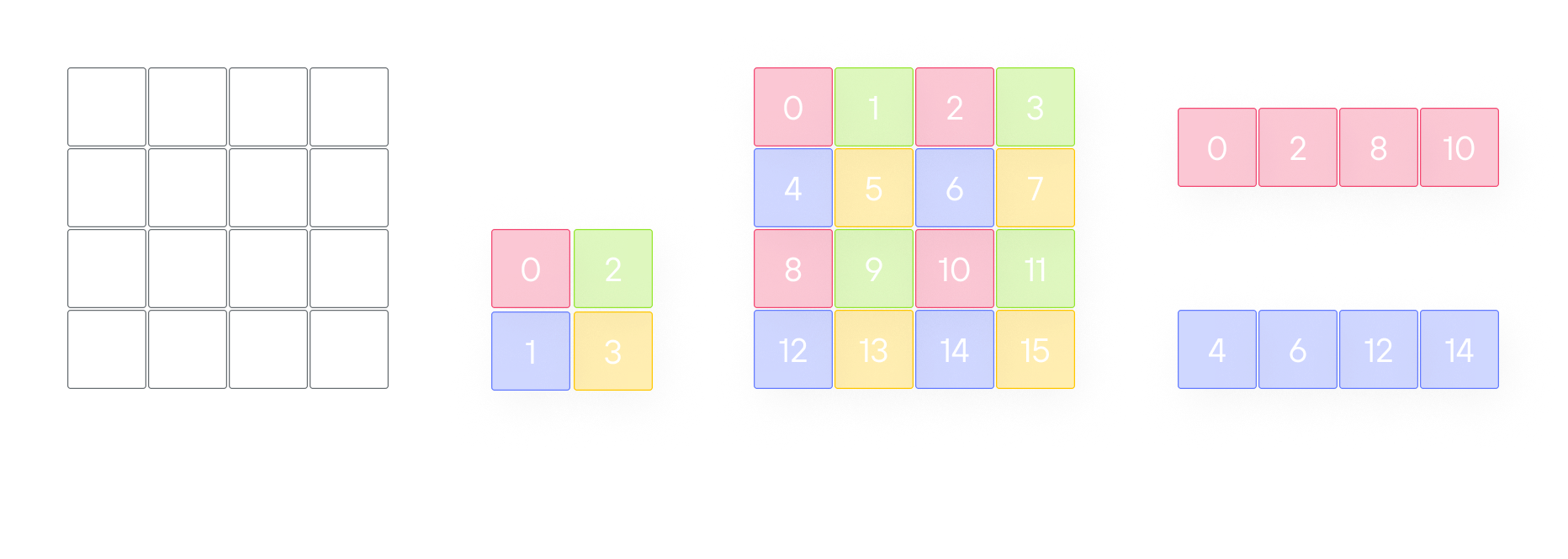

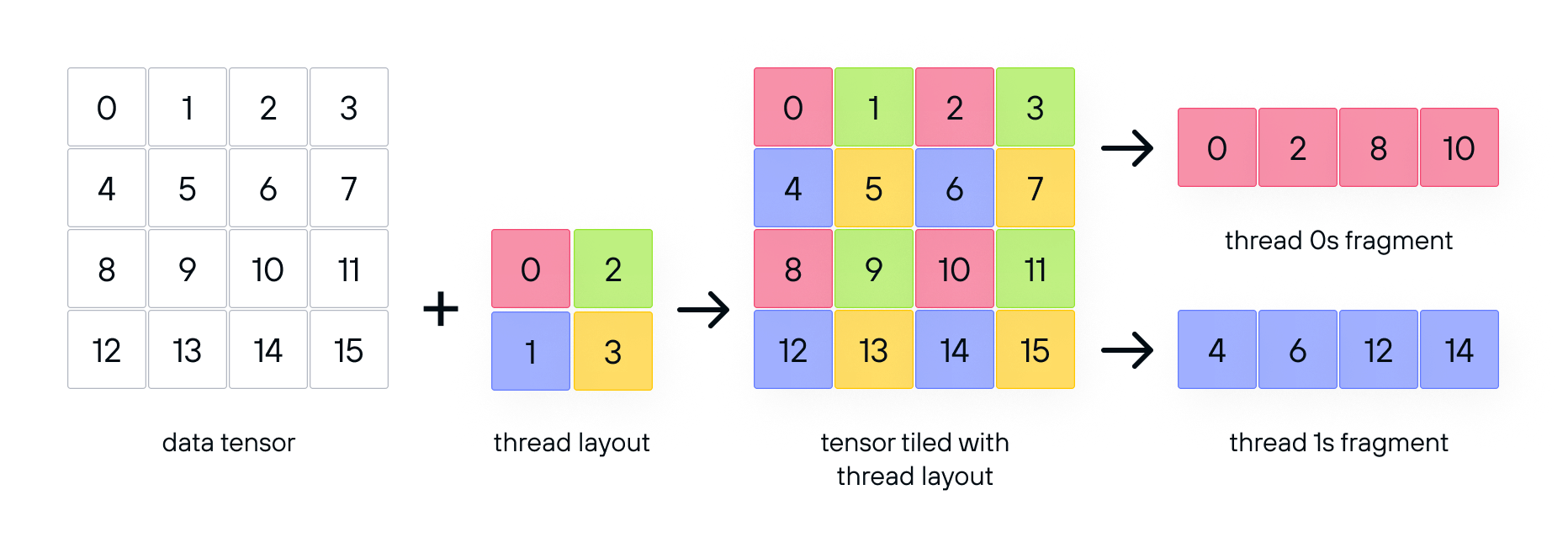

Partitioning a tensor into thread-local fragments to distribute work across a thread block.

LayoutTensor is especially valuable for writing GPU kernels, and a number of its APIs are GPU-specific. However, LayoutTensor can also be used for CPU-based algorithms.

A LayoutTensor consists of three main properties:

A layout, defining how the elements are laid out in memory.
A DType, defining the data type stored in the tensor.
A pointer to memory where the data is stored.

Figure 1 shows the relationship between the layout and the storage.

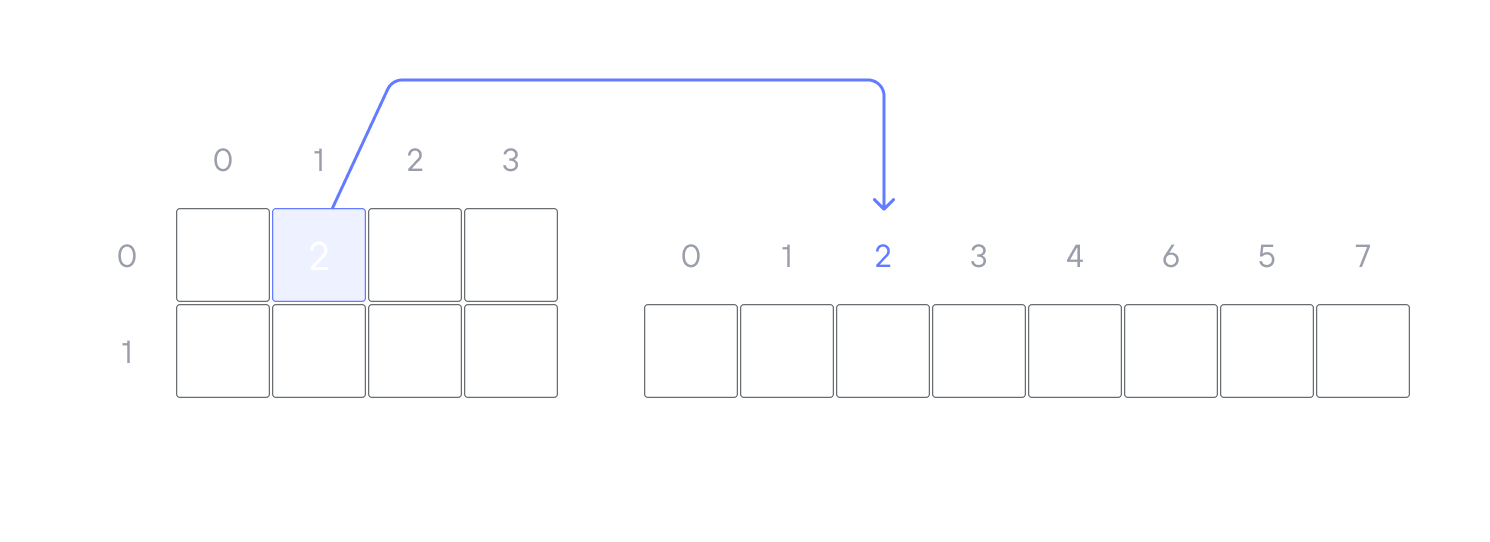

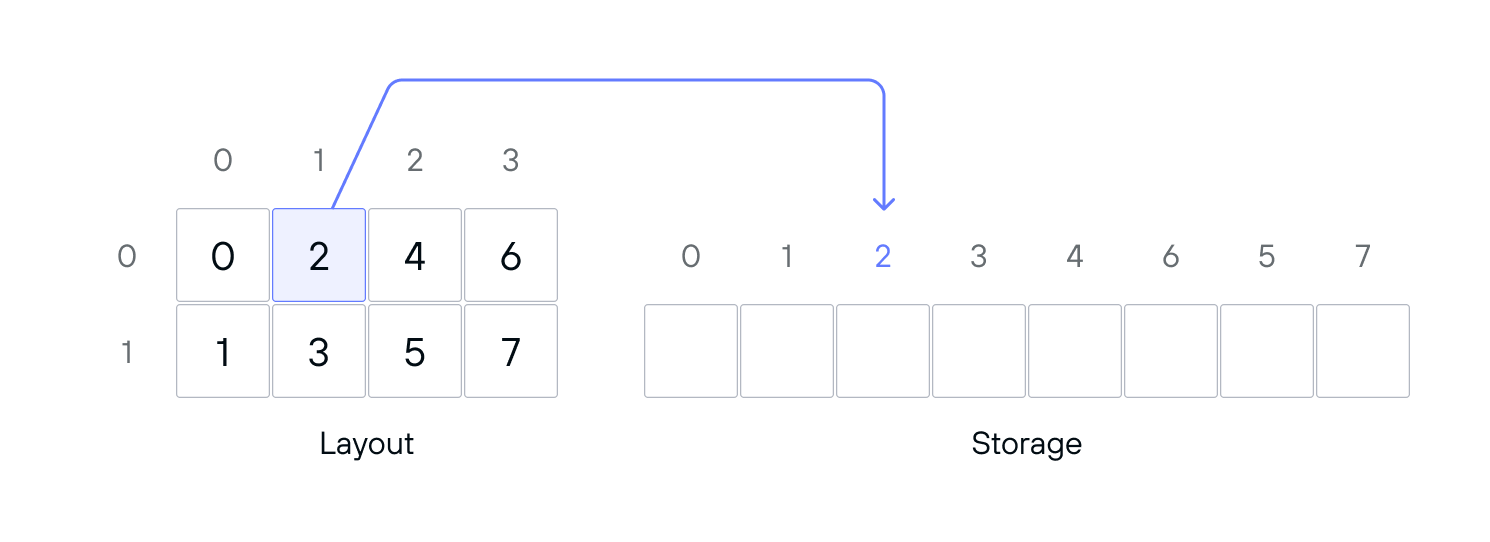

**Figure 1.** Layout and storage for a 2D tensor

Figure 1 shows a 2D column-major layout, and the corresponding linear array of storage. The values shown inside the layout are offsets into the storage: so the coordinates (0, 1) correspond to offset 2 in the storage.

Because LayoutTensor is a view, creating a new tensor based on an existing tensor doesn't require copying the underlying data. So you can easily create a new view, representing a tile (sub-tensor), or accessing the elements in a different order. These views all access the same data, so changing the stored data in one view changes the data seen by all of the views.

Each element in a tensor can be either a single (scalar) value or a SIMD vector of values. For a vectorized layout, you can specify an element layout that determines how the vector elements are laid out in memory. For more information, see Vectorizing tensors.

Accessing tensor elements

For tensors with simple row-major or column-major layouts, you can address a layout tensor like a multidimensional array to access elements:

element = tensor2d[x, y]
tensor2d[x, y] = z
element = tensor2d[x, y]
tensor2d[x, y] = z

The number of indices passed to the subscript operator must match the number of coordinates required by the tensor. For simple layouts, this is the same as the layout's rank: two for a 2D tensor, three for a 3D tensor, and so on. If the number of indices is incorrect, you may see a cryptic runtime error.

# Indexing into a 2D tensor requires two indices
el1 = tensor2d[x, y]  # Works
el2 = tensor2d[x]  # Runtime error
# Indexing into a 2D tensor requires two indices
el1 = tensor2d[x, y]  # Works
el2 = tensor2d[x]  # Runtime error

For more complicated "nested" layouts, such as tiled layouts, the number of indices doesn't match the rank of the tensor. For details, see Tensor indexing and nested layouts.

The __getitem__() method returns a SIMD vector of elements, and the compiler can't statically determine the size of the vector (which is the size of the tensor's element layout). This can cause type checking errors at compile time, because some APIs can only accept scalar values (SIMD vectors of width 1). For example, consider the following code:

i: Int = SIMD[DType.int32, width](15)
i: Int = SIMD[DType.int32, width](15)

If width is 1, the vector can be implicitly converted to an Int, but if width is any other value, the vector can't be implicitly converted. If width isn't known at compile time, this produces an error.

If your tensor stores scalar values, you can work around this by explicitly taking the first item in the vector:

element = tensor[x, y][0]  # element is guaranteed to be a scalar value
element = tensor[x, y][0]  # element is guaranteed to be a scalar value

You can also access elements using the load() and store() methods, which let you specify the vector width explicitly:

var elements: SIMD[DType.float32, 4]
elements = tensor.load[4](x, y)
elements = elements * 2
tensor.store(x, y, elements)
var elements: SIMD[DType.float32, 4]
elements = tensor.load[4](x, y)
elements = elements * 2
tensor.store(x, y, elements)

Tensor indexing and nested layouts

A tensor's layout may have nested modes (or sub-layouts), as described in Introduction to layouts. These layouts have one or more of their dimensions divided into sub-layouts. For example, Figure 2 shows a tensor with a nested layout:

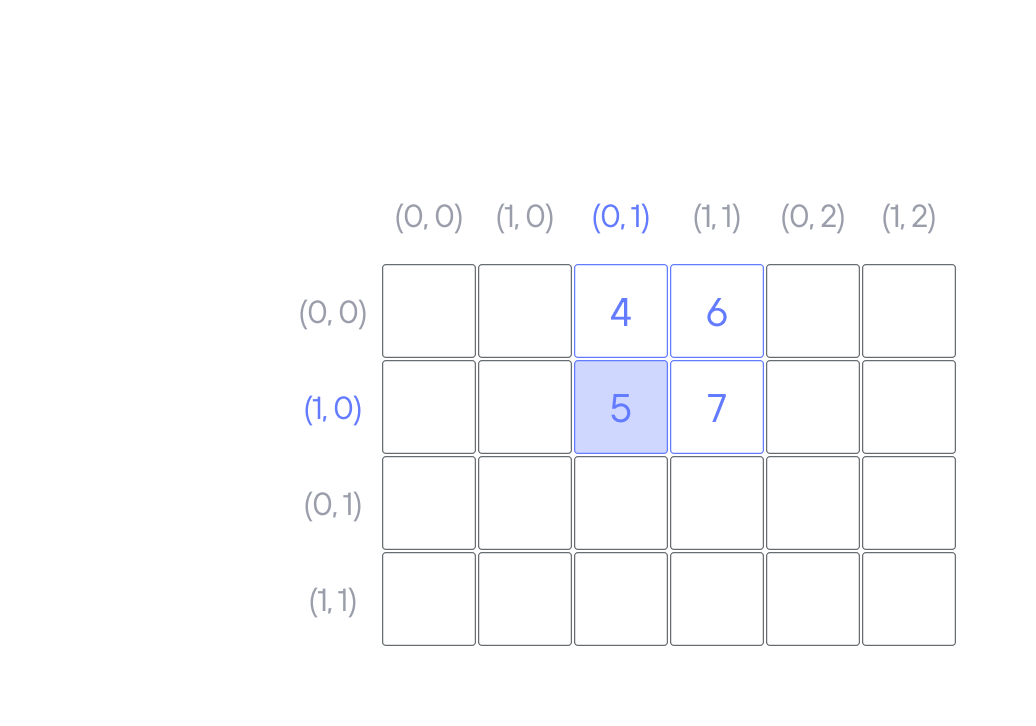

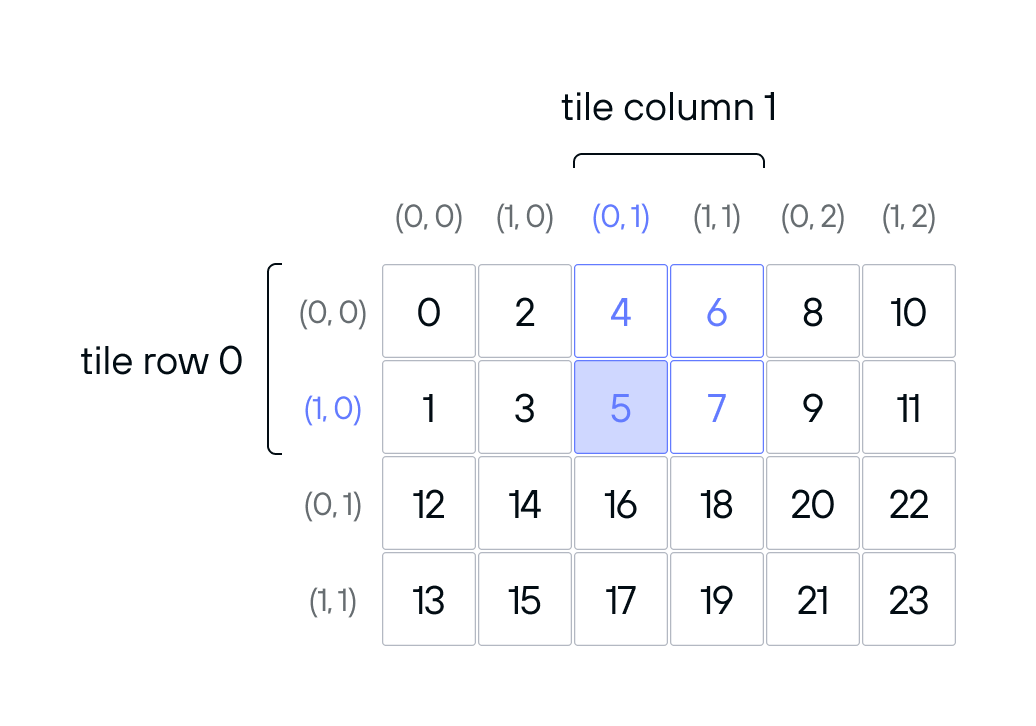

Figure 2 shows a tensor with a tile-major nested layout. Instead of being addressed with a single coordinate on each axis, it has a pair of coordinates per axis. For example, the coordinates ((1, 0), (0, 1)) map to the offset 6.

You can't pass nested coordinates to the subscript operator [], but you can pass a flattened version of the coordinates. For example:

# retrieve the value at ((1, 0), (0, 1))
element = nested_tensor[1, 0, 0, 1][0]
# retrieve the value at ((1, 0), (0, 1))
element = nested_tensor[1, 0, 0, 1][0]

The number of indices passed to the subscript operator must match the flattened rank of the tensor.

You can't currently use the load() and store() methods for tensors with nested layouts. However, these methods are usually used on tensors that have been tiled, which yields a tensor with a simple layout.

Creating a LayoutTensor

There are several ways to create a LayoutTensor, depending on where the tensor data resides:

On the CPU.
In GPU global memory.
In GPU shared or local memory.

In addition to methods for creating a tensor from scratch, LayoutTensor provides a number of methods for producing a new view of an existing tensor.

No bounds checking

The LayoutTensor constructors don't do any bounds-checking to verify that the allocated memory is large enough to hold all of the elements specified in the layout. It's up to the user to ensure that the proper amount of space is allocated.

Creating a `LayoutTensor` on the CPU

While LayoutTensor is often used on the GPU, you can also use it to create tensors for use on the CPU.

To create a LayoutTensor for use on the CPU, you need a Layout and a block of memory to store the tensor data. A common way to allocate memory for a LayoutTensor is to use an InlineArray:

alias rows = 8
alias columns = 16
alias layout = Layout.row_major(rows, columns)
var storage = InlineArray[Float32, rows * columns](uninitialized=True)
var tensor = LayoutTensor[DType.float32, layout](storage).fill(0)
alias rows = 8
alias columns = 16
alias layout = Layout.row_major(rows, columns)
var storage = InlineArray[Float32, rows * columns](uninitialized=True)
var tensor = LayoutTensor[DType.float32, layout](storage).fill(0)

InlineArray is a statically-sized, stack-allocated array, so it's a fast and efficient way to allocate storage for most kinds of LayoutTensor. There are target-dependent limits on how much memory can be allocated this way, however.

You can also create a LayoutTensor using an UnsafePointer. This may be preferable for very large tensors.

alias rows = 1024
alias columns = 1024
alias buf_size = rows * columns
alias layout = Layout.row_major(rows, columns)
var ptr = UnsafePointer[Float32].alloc(buf_size)
memset(ptr, 0, buf_size)
var tensor = LayoutTensor[DType.float32, layout](storage)
alias rows = 1024
alias columns = 1024
alias buf_size = rows * columns
alias layout = Layout.row_major(rows, columns)
var ptr = UnsafePointer[Float32].alloc(buf_size)
memset(ptr, 0, buf_size)
var tensor = LayoutTensor[DType.float32, layout](storage)

Note that this example uses memset() instead of the LayoutTensor fill() method. The fill() method performs elementwise initialization of the tensor, so it may be slow for large tensors.

Creating a `LayoutTensor` on the GPU

When creating a LayoutTensor for use on the GPU, you need to consider which memory space the tensor data will be stored in:

GPU global memory can only be allocated from the host (CPU), as a DeviceBuffer.
GPU shared or local memory can be statically allocated on the GPU.

Creating a `LayoutTensor` in global memory

You must allocate global memory from the host side, by allocating a DeviceBuffer. You can either construct a LayoutTensor using this memory on the host side, before invoking a GPU kernel, or you can construct a LayoutTensor inside the kernel itself:

On the CPU, you can construct a LayoutTensor using a DeviceBuffer as its storage. Although you can create this tensor on the CPU and pass it in to a kernel function, you can't directly modify its values on the CPU, since the memory is on the GPU.
On the GPU: When a DeviceBuffer is passed in to enqueue_function(), the kernel receives a corresponding UnsafePointer in place of the DeviceBuffer. The kernel can then create a LayoutTensor using the pointer.

In both cases, if you want to initialize data for the tensor from the CPU, you can call enqueue_copy() or enqueue_memset() on the buffer prior to invoking the kernel. The following example shows initializing a LayoutTensor from the CPU and passing it to a GPU kernel.

fn initialize_tensor_from_cpu_example():
    alias dtype = DType.float32
    alias rows = 32
    alias cols = 8
    alias block_size = 8
    num_blocks = rows * cols // (block_size * block_size)
    alias input_layout = Layout.row_major(rows, cols)

    fn kernel(tensor: LayoutTensor[dtype, input_layout, MutableAnyOrigin]):
        if (global_idx.x < tensor.shape[0]() and global_idx.y < tensor.shape[1]()):
            tensor[global_idx.x, global_idx.y] = (
                tensor[global_idx.x, global_idx.y] + 1
            )

    try:
        var ctx = DeviceContext()
        var host_buf = ctx.enqueue_create_host_buffer[dtype](rows * cols)
        ctx.synchronize()


        var expected_values = List[Scalar[dtype]](rows * cols)
        for i in range(rows * cols):
            host_buf[i] = i
            expected_values[i] = i + 1
        var dev_buf = ctx.enqueue_create_buffer[dtype](rows * cols)
        ctx.enqueue_copy(dev_buf, host_buf)
        var tensor = LayoutTensor[dtype, input_layout](dev_buf)

        ctx.enqueue_function[kernel](
            tensor,
            grid_dim=(num_blocks, num_blocks),
            block_dim=(block_size, block_size),
        )
        ctx.enqueue_copy(host_buf, dev_buf)
        ctx.synchronize()

        for i in range(rows * cols):
            if host_buf[i] != expected_values[i]:
                raise Error(
                    String("Unexpected value ", host_buf[i], " at position ", i)
        print("Success")
    except error:
        print(error)
fn initialize_tensor_from_cpu_example():
    alias dtype = DType.float32
    alias rows = 32
    alias cols = 8
    alias block_size = 8
    num_blocks = rows * cols // (block_size * block_size)
    alias input_layout = Layout.row_major(rows, cols)

    fn kernel(tensor: LayoutTensor[dtype, input_layout, MutableAnyOrigin]):
        if (global_idx.x < tensor.shape[0]() and global_idx.y < tensor.shape[1]()):
            tensor[global_idx.x, global_idx.y] = (
                tensor[global_idx.x, global_idx.y] + 1
            )

    try:
        var ctx = DeviceContext()
        var host_buf = ctx.enqueue_create_host_buffer[dtype](rows * cols)
        ctx.synchronize()


        var expected_values = List[Scalar[dtype]](rows * cols)
        for i in range(rows * cols):
            host_buf[i] = i
            expected_values[i] = i + 1
        var dev_buf = ctx.enqueue_create_buffer[dtype](rows * cols)
        ctx.enqueue_copy(dev_buf, host_buf)
        var tensor = LayoutTensor[dtype, input_layout](dev_buf)

        ctx.enqueue_function[kernel](
            tensor,
            grid_dim=(num_blocks, num_blocks),
            block_dim=(block_size, block_size),
        )
        ctx.enqueue_copy(host_buf, dev_buf)
        ctx.synchronize()

        for i in range(rows * cols):
            if host_buf[i] != expected_values[i]:
                raise Error(
                    String("Unexpected value ", host_buf[i], " at position ", i)
        print("Success")
    except error:
        print(error)

Creating a `LayoutTensor` in shared or local memory

To create a tensor on the GPU in shared memory or local memory, use the LayoutTensor.stack_allocation() static method to create a tensor with backing memory in the appropriate memory space.

Both shared and local memory are very limited resources, so a common pattern is to copy a small tile of a larger tensor into shared memory or local memory to reduce memory access time.

alias tile_layout = Layout.row_major(16, 16)

var shared_tile = LayoutTensor[
    dtype,
    tile_layout,
    MutableAnyOrigin,
    address_space = AddressSpace.SHARED,
].stack_allocation()
alias tile_layout = Layout.row_major(16, 16)

var shared_tile = LayoutTensor[
    dtype,
    tile_layout,
    MutableAnyOrigin,
    address_space = AddressSpace.SHARED,
].stack_allocation()

The name stack_allocation() is misleading. It is a static allocation, meaning the allocation is processed at compile time. The allocation is like a C/C++ stack allocation in that its lifetime ends when the function in which it was allocated returns. This API may be subject to change in the near future.

In the case of shared memory, all threads in a thread block see the same allocation. For local memory, each thread gets a separate allocation.

Tiling tensors

A fundamental pattern for using a layout tensor is to divide the tensor into smaller tiles to achieve better data locality and cache efficiency. In a GPU kernel you may want to select a tile that corresponds to the size of a thread block. For example, given a 2D thread block of 16x16 threads, you could use a 16x16 tile (with each thread handling one element in the tile) or a 64x16 tile (with each thread handling 4 elements from the tensor).

Tiles are most commonly 1D or 2D. For element-wise calculations, where the output value for a given tensor element depends on only one input value, 1D tiles are easy to reason about. For calculations that involve neighboring elements, 2D tiles can help maintain data locality. For example, matrix multiplication or 2D convolution operations usually use 2D tiles.

LayoutTensor provides a tile() method for extracting a single tile. You can also iterate through tiles using the LayoutTensorIter type.

When tiling a tensor that isn't an exact multiple of the tile size, you can create the tensor as a masked tensor (with the optional masked parameter set to True). When tiling a masked tensor, the tile operations will return partial tiles at the edges of the tensor. These tiles will be smaller than the requested tile size. You can use the tensor.dim(axis) method to query the tile dimensions at runtime.

Extracting a tile

The LayoutTensor.tile() method extracts a tile with a given size at a given set of coordinates:

tensor.tile[32, 32](0, 1)
tensor.tile[32, 32](0, 1)

This call defines a 32x32 tile size, and extracts the tile at row 0, column 1, as shown in Figure 3.

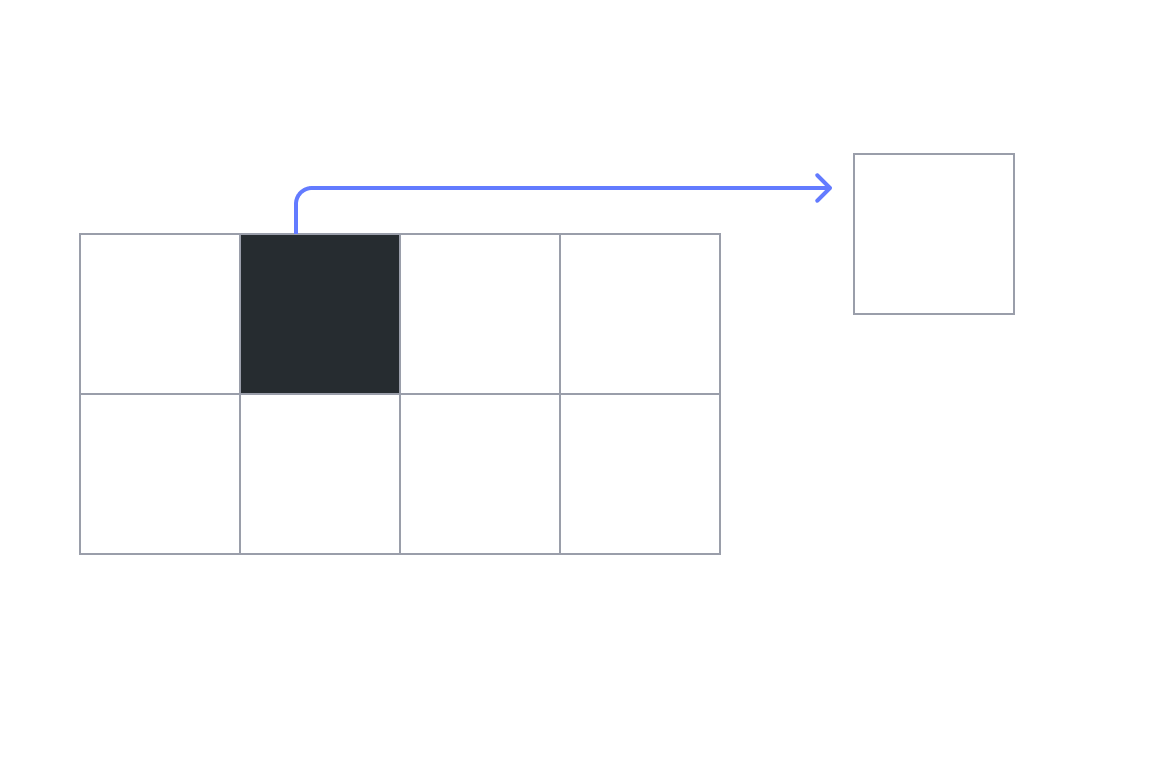

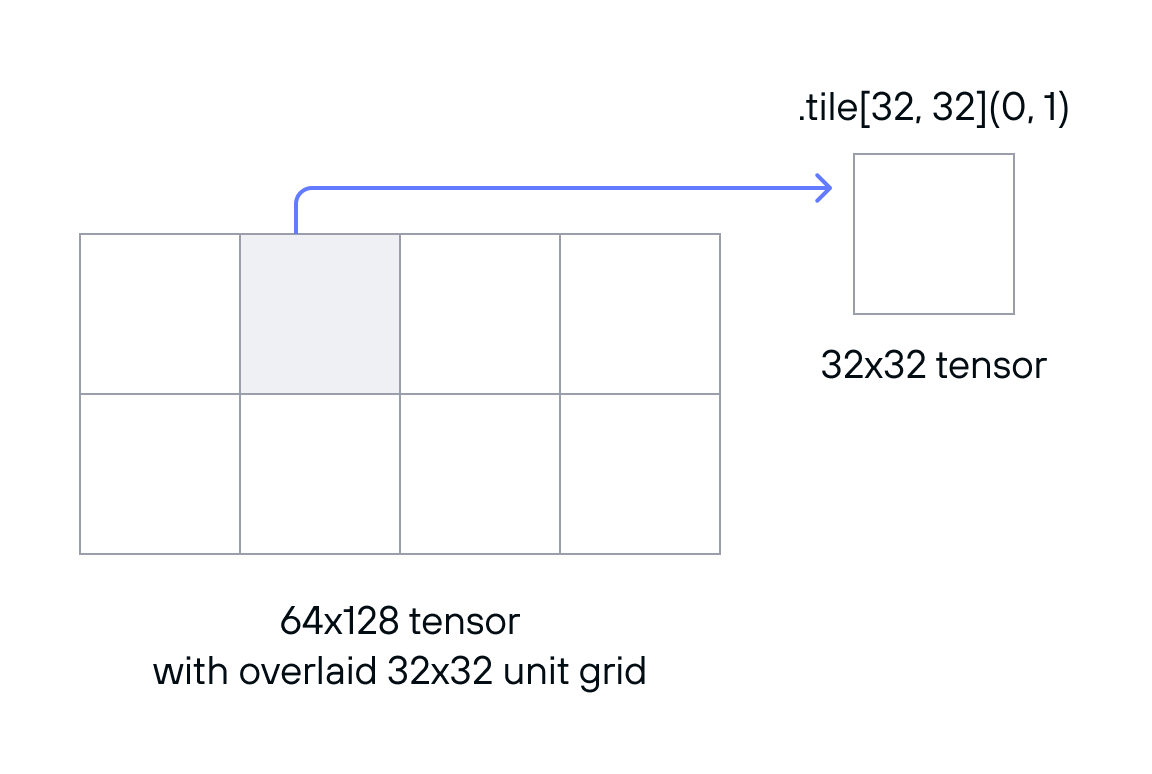

**Figure 3.** Extracting a tile from a tensor

Note that the coordinates are specified in tiles.

The layout of the extracted tile depends on the layout of the parent tensor. For example, if the parent tensor has a column-major layout, the extract tile has a column-major layout.

If you're extracting a tile from a tensor with a tiled layout, the extracted tile must match the tile boundaries of the parent tensor. For example, if the parent tensor is composed of 8x8 row-major tiles, a tile size of 8x8 yields an extracted tile with an 8x8 row-major layout.

Trying to extract a tile that's not an even multiple of the parent tile size usually results in an error.

If you need to know the type of the tile (to declare a variable, for example), you can use the tile_type() method, with the same tile size parameters. Only use tile_type() inside the __type_of() operator.

alias MyTileType = __type_of(tensor.tile_type[32, 32]())
var my_tile: MyTileType
alias MyTileType = __type_of(tensor.tile_type[32, 32]())
var my_tile: MyTileType

Tiled iterators

The LayoutTensorIter struct provides a way to iterate through a block of memory, generating a layout tensor for each position. There are two ways to use LayoutTensorIter:

Starting with a memory buffer, you can generate a series of tiles.
Given an existing layout tensor, you can extract a set of tiles along a given axis.

Tiling a memory buffer

When you start with a memory buffer, LayoutTensorIter iterates through the memory one tile at a time. This essentially treats the memory as a flat array of tiles.

alias buf_size = 16
var storage = InlineArray[Int16, buf_size](uninitialized=True)
for i in range(buf_size):
    storage[i] = i
alias tile_layout = Layout.row_major(2, 2)
var iter = LayoutTensorIter[DType.int16, tile_layout, MutableAnyOrigin](
    storage.unsafe_ptr(), buf_size
)

for i in range(buf_size // tile_layout.size()):
    tile = iter[]
    print(tile)
    print(" - ")
    iter += 1
alias buf_size = 16
var storage = InlineArray[Int16, buf_size](uninitialized=True)
for i in range(buf_size):
    storage[i] = i
alias tile_layout = Layout.row_major(2, 2)
var iter = LayoutTensorIter[DType.int16, tile_layout, MutableAnyOrigin](
    storage.unsafe_ptr(), buf_size
)

for i in range(buf_size // tile_layout.size()):
    tile = iter[]
    print(tile)
    print(" - ")
    iter += 1

The iterator constructor takes all of the parameters you'd use to construct a LayoutTensor—a DType, layout, and an origin—and as arguments it takes a pointer and the size of the memory buffer.

Note that the iterator doesn't work like a standard iterator, and you can't use it directly in a for statement like you would use a collection. Instead, you can use either the dereference operator (iter[]) or the get() method to retrieve a LayoutTensor representing the tile at the current position.

You can advance the iterator by incrementing it, as shown above. The iterator also supports next() and next_unsafe() methods, which return a copy of the iterator incremented by a specified offset (default 1). This means you can also use a pattern like this:

for i in range(num_tiles):
    current_tile = iter.next(i)[]
    …
for i in range(num_tiles):
    current_tile = iter.next(i)[]
    …

LayoutTensorIter also has an optional boolean circular parameter. A LayoutTensorIter created with circular=True treats the memory buffer as circular; when it hits the end of the buffer, it starts over again at the beginning.

Tiling a `LayoutTensor`

To iterate over a tensor, call the tiled_iterator() method, which produces a LayoutTensorIter:

from layout import LayoutTensor
from math import ceildiv

# given a tensor of size rows x cols
alias num_row_tiles = ceildiv(rows, tile_size)
alias num_col_tiles = ceildiv(cols, tile_size)

for i in range(num_row_tiles):
    var iter = tensor.tiled_iterator[tile_size, tile_size, axis=1](i, 0)

    for _ in range(num_col_tiles):
        tile = iter[]
        # … do something with the tile
        iter += 1
from layout import LayoutTensor
from math import ceildiv

# given a tensor of size rows x cols
alias num_row_tiles = ceildiv(rows, tile_size)
alias num_col_tiles = ceildiv(cols, tile_size)

for i in range(num_row_tiles):
    var iter = tensor.tiled_iterator[tile_size, tile_size, axis=1](i, 0)

    for _ in range(num_col_tiles):
        tile = iter[]
        # … do something with the tile
        iter += 1

Vectorizing tensors

When working with tensors, it's frequently efficient to access more than one value at a time. For example, having a single GPU thread calculate multiple output values ("thread coarsening") can frequently improve performance. Likewise, when copying data from one memory space to another, it's often helpful for each thread to copy a SIMD vector worth of values, instead of a single value. Many GPUs have vectorized copy instructions that can make copying more efficient.

To choose the optimum vector size, you need to know the vector operations supported for your current GPU for the data type you're working with. (For example, if you're working with 32-bit values and the GPU supports 128-bit copy operations, you can use a vector width of 4.) You can use the simdwidthof() method to find the appropriate vector width:

from sys.info import simdwidthof
from gpu.host.compile import get_gpu_target

alias simd_width = simdwidthof[DType.float32, get_gpu_target()]
from sys.info import simdwidthof
from gpu.host.compile import get_gpu_target

alias simd_width = simdwidthof[DType.float32, get_gpu_target()]

The vectorize() method creates a new view of the tensor where each element of the tensor is a vector of values.

v_tensor = tensor.vectorize[1, simd_width]()

The vectorized tensor is a view of the original tensor, pointing to the same data. The underlying number of scalar values remains the same, but the tensor layout and element layout changes, as shown in Figure 4.

Partitioning a tensor across threads

When working with tensors on the GPU, it's sometimes desirable to distribute the elements of a tensor across the threads in a thread block. The distribute() method takes a thread layout and a thread ID and returns a thread-specific fragment of the tensor.

The thread layout is tiled across the tensor. The Nth thread receives a fragment consisting of the Nth value from each tile. For example, Figure 5 shows how distribute() forms fragments given a 4x4, row-major tensor and a 2x2, column-major thread layout:

**Figure 5.** Partitioning a tensor into fragments

In Figure 5, the numbers in the data layout represent offsets into storage, as usual. The numbers in the thread layout represent thread IDs.

The example in Figure 5 uses a small thread layout for illustration purposes. In practice, it's usually optimal to use a thread layout that's the same size as the warp size of your GPU, so the work is divided across all available threads. For example, the following code vectorizes and partitions a tensor over a full warp worth of threads:

alias thread_layout = Layout.row_major(WARP_SIZE // simd_size, simd_size)
var fragment = tile.vectorize[1, simd_size]().distribute[thread_layout](lane_id())
alias thread_layout = Layout.row_major(WARP_SIZE // simd_size, simd_size)
var fragment = tile.vectorize[1, simd_size]().distribute[thread_layout](lane_id())

Given a 16x16 tile size, a warp size of 32 and a simd_size of 4, this code produces a 4x16 tensor of 1x4 vectors. The thread layout is an 8x4 row major layout.

Copying tensors

The layout-tensor package provides a large set of utilities for copying tensors. A number of these are specialized for copying between various GPU memory spaces. All of the layout tensor copy methods respect the layouts—so you can transform a tensor by copying it to a tensor with a different layout.

LayoutTensor itself provides two methods for copying tensor data:

copy_from() copies data from a source tensor to the current tensor, which may be in a different memory space.
copy_from_async() is an optimized copy mechanism for asynchronously copying from GPU global memory to shared memory.

Both of these methods copy the entire source tensor. To divide the copying work among multiple threads, you need to use distribute() to create thread-local tensor fragments, as described in Partitioning a tensor across threads.

The following code sample demonstrates using both copy methods to copy data to and from shared memory.

fn copy_from_async_example():
    alias dtype = DType.float32
    alias in_size = 128
    alias block_size = 16
    alias num_blocks = in_size // block_size # number of block in one dimension
    alias input_layout = Layout.row_major(in_size, in_size)
    alias simd_width_gpu = simdwidthof[dtype, get_gpu_target()]()

    fn kernel(tensor: LayoutTensor[dtype, input_layout, MutableAnyOrigin]):
        # extract a tile from the input tensor.
        var global_tile = tensor.tile[block_size, block_size](block_idx.x, block_idx.y)
        alias tile_layout = Layout.row_major(block_size, block_size)
        var shared_tile = LayoutTensor[
            dtype,
            tile_layout,
            MutableAnyOrigin,
            address_space = AddressSpace.SHARED,
        ].stack_allocation()

        # Create thread layouts for copying
        alias thread_layout = Layout.row_major(
            WARP_SIZE // simd_width_gpu, simd_width_gpu
        )
        var global_fragment = global_tile.vectorize[
            1, simd_width_gpu
        ]().distribute[thread_layout](lane_id())
        var shared_fragment = shared_tile.vectorize[
            1, simd_width_gpu
        ]().distribute[thread_layout](lane_id())

        shared_fragment.copy_from_async(global_fragment)
        async_copy_wait_all()

        # Put some data into the shared tile that we can verify on the host.
        if (global_idx.x < in_size and global_idx.y < in_size):
           shared_tile[thread_idx.x, thread_idx.y] = (
               global_idx.x * in_size + global_idx.y
           )

        barrier()
        global_fragment.copy_from(shared_fragment)

    try:
        var ctx = DeviceContext()
        var host_buf = ctx.enqueue_create_host_buffer[dtype](in_size * in_size)
        var dev_buf = ctx.enqueue_create_buffer[dtype](in_size * in_size)
        ctx.enqueue_memset(dev_buf, 0.0)
        var tensor = LayoutTensor[dtype, input_layout](dev_buf)

        ctx.enqueue_function[kernel](
            tensor,
            grid_dim=(num_blocks, num_blocks),
            block_dim=(block_size, block_size),
        )
        ctx.enqueue_copy(host_buf, dev_buf)
        ctx.synchronize()
        for i in range(in_size * in_size):
            if host_buf[i] != i:
                raise Error(
                    String("Unexpected value ", host_buf[i], " at position ", i)
                )
        print("Success!")
    except error:
        print(error)
fn copy_from_async_example():
    alias dtype = DType.float32
    alias in_size = 128
    alias block_size = 16
    alias num_blocks = in_size // block_size # number of block in one dimension
    alias input_layout = Layout.row_major(in_size, in_size)
    alias simd_width_gpu = simdwidthof[dtype, get_gpu_target()]()

    fn kernel(tensor: LayoutTensor[dtype, input_layout, MutableAnyOrigin]):
        # extract a tile from the input tensor.
        var global_tile = tensor.tile[block_size, block_size](block_idx.x, block_idx.y)
        alias tile_layout = Layout.row_major(block_size, block_size)
        var shared_tile = LayoutTensor[
            dtype,
            tile_layout,
            MutableAnyOrigin,
            address_space = AddressSpace.SHARED,
        ].stack_allocation()

        # Create thread layouts for copying
        alias thread_layout = Layout.row_major(
            WARP_SIZE // simd_width_gpu, simd_width_gpu
        )
        var global_fragment = global_tile.vectorize[
            1, simd_width_gpu
        ]().distribute[thread_layout](lane_id())
        var shared_fragment = shared_tile.vectorize[
            1, simd_width_gpu
        ]().distribute[thread_layout](lane_id())

        shared_fragment.copy_from_async(global_fragment)
        async_copy_wait_all()

        # Put some data into the shared tile that we can verify on the host.
        if (global_idx.x < in_size and global_idx.y < in_size):
           shared_tile[thread_idx.x, thread_idx.y] = (
               global_idx.x * in_size + global_idx.y
           )

        barrier()
        global_fragment.copy_from(shared_fragment)

    try:
        var ctx = DeviceContext()
        var host_buf = ctx.enqueue_create_host_buffer[dtype](in_size * in_size)
        var dev_buf = ctx.enqueue_create_buffer[dtype](in_size * in_size)
        ctx.enqueue_memset(dev_buf, 0.0)
        var tensor = LayoutTensor[dtype, input_layout](dev_buf)

        ctx.enqueue_function[kernel](
            tensor,
            grid_dim=(num_blocks, num_blocks),
            block_dim=(block_size, block_size),
        )
        ctx.enqueue_copy(host_buf, dev_buf)
        ctx.synchronize()
        for i in range(in_size * in_size):
            if host_buf[i] != i:
                raise Error(
                    String("Unexpected value ", host_buf[i], " at position ", i)
                )
        print("Success!")
    except error:
        print(error)

Thread-aware copy functions

The layout_tensor package also includes a number of specialized copy functions for different scenarios, such as copying from shared memory to local memory. These functions are all thread-aware: instead of passing in tensor fragments, you pass in a thread layout which the function uses to partition the work.

As with the copy_from() and copy_from_async() methods, use the vectorize() method prior to copying to take advantage of vectorized copy operations.

Many of the thread-aware copy functions have very specific requirements for the shape of the copied tensor and thread layout, based on the specific GPU and data type in use.

Summary

In this document, we've explored the fundamental concepts and practical usage of LayoutTensor. At its core, LayoutTensor provides a powerful abstraction for working with multi-dimensional data. By combining a layout (which defines memory organization), a data type, and a memory pointer, LayoutTensor enables flexible and efficient data manipulation without unnecessary copying of the underlying data.

We covered several essential tensor operations that form the foundation of working with LayoutTensor, including creating tensors, accessing tensor elements, and copying data between tensors.

We also covered key patterns for optimizing data access:

Tiling tensors for data locality. Accessing tensors one tile at a time can improve cache efficiency. On the GPU, tiling can allow the threads of a thread block to share high-speed access to a subset of a tensor.
Vectorizing tensors for more efficient data loads and stores.
Partitioning or distributing tensors into thread-local fragments for processing.

These patterns provide the building blocks for writing efficient kernels in Mojo while maintaining clean, readable code.

To see some practical examples of LayoutTensor in use, see Optimize custom ops for GPUs with Mojo .

Accessing tensor elements​

Tensor indexing and nested layouts​

Creating a LayoutTensor​

Creating a LayoutTensor on the CPU​

Creating a LayoutTensor on the GPU​

Creating a LayoutTensor in global memory​

Creating a LayoutTensor in shared or local memory​

Tiling tensors​

Extracting a tile​

Tiled iterators​

Tiling a memory buffer​

Tiling a LayoutTensor​

Vectorizing tensors​

Partitioning a tensor across threads​

Copying tensors​

Thread-aware copy functions​

Summary​
